K-II type chain hoist (Manual Chain Block)

Products > Manual Chain Hoist > K-II type chain hoist (Manual Chain Block)

K-II type chain hoist (Manual Chain Block)

1) Capacity: From 1T --10Ton
2) Double cover protection
3) Fully forged Hooks
4) with Double pawls
5) with Double guide wheel
6) with G80 load chains of high quality
7) Load chains can be galvanized/blacked as per option.

K-II type chain hoist (K-II Type Manual Chain Block)

1. Standard G80 alloy steel chain.

2. The opening of the hooks has been made wider for easier handling and working. And if by any chance the hook is overloaded, there is no fear of its breaking, and it will simply start straightening out gradually, avoiding any load drop human injury.

3. The tough gear case, reinforced with four ribs and four knock pins, provides accurate gear centering and high mechanical efficiency.

4. Rolled edge hand wheel cover. This provides smooth operation of the hand chain when pulled sideways.

5. Strong and least-corrosive electrostatic powder painting.

6. Thickish friction discs with longer life.

7. Unique chain guide.


K-II type chain hoist


1.Double pawls supporting fail-safe brake mechanism for secure operations.

2.Wet friction discs with longer life.

3.Unique chain guide.

4.Heat-treated steel side plates, gears, and shafts for enhanced strength.

5. Quenched and Tempered High Tensile Alloy Steel Chain and hooks.

6. Forged upper and bottom hooks with forged steel safety latches.

7. Powder-coated finish.

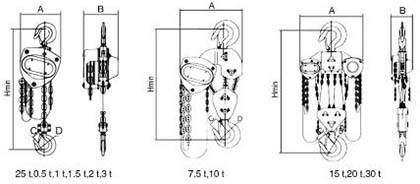

K-II Type Manual Chain Hoist parameter
