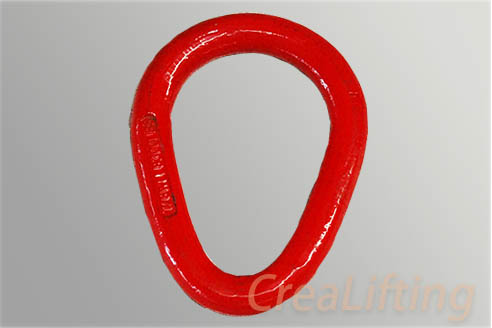

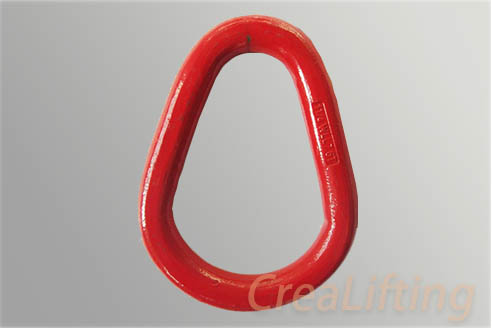

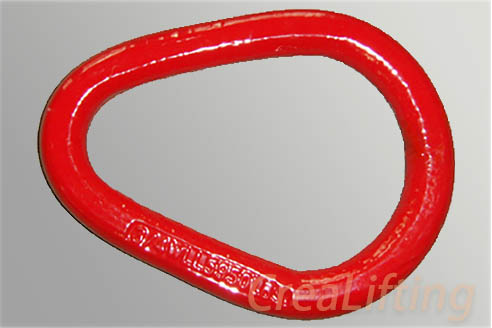

G80 Forged Pear Shaped Link


■ Powder painted, another color is available as per request.
■ The working load limits permanently are shown on the body.
■ Max's proof load is 2.5 times the working load limited.
■ Min. Breaking strength is 4 times of the W.L.L.


G80 Forged Pear Shaped Link


 Powder painted, another color is available as per request.
 The working load limits permanently are shown on the body.
 Max's proof load is 2.5 times the working load limited.
 Min. Breaking strength is 4 times of the W.L.L.

Size (in)

W.L.L (lbs)

W.L.L (lbs)

Dimension (mm)

Weight (kg/pc)

Alloy (5:1)

Carbon (6:1)

A

B

C

D

3/8"

3600

1800

10

28.5

19

10

0.1

1/2"

7000

2900

12.5

38

25.5

12.5

0.25

5/8"

9000

4200

16

47.5

32

16

0.5

3/4"

12300

6000

19

57

38

19

0.8

7/8"

14000

8300

22

67

44.5

22.2

1.4

1"

24360

10800

25

76

51

25.4

1.9

1-1/8"

30600

12000

28

86

57

28.5

2.92

1-1/4"

36000

16750

32

95

63.5

31.75

3.75

1-3/8"

43000

20500

35

105

70

35

5.12

1-1/2"

54300

25000

38

114

76

38

6.5


It is required that the products are regularly inspected and that the inspection should take place in accordance with the safety standards given in the country of use. This is required because the products in use may be affected by wear, misuse, overloading, etc. with a consequence of deformation and alteration of the material structure.

Inspection should take place at least every six months and even more frequently when the hooks are used in severe operating conditions.
