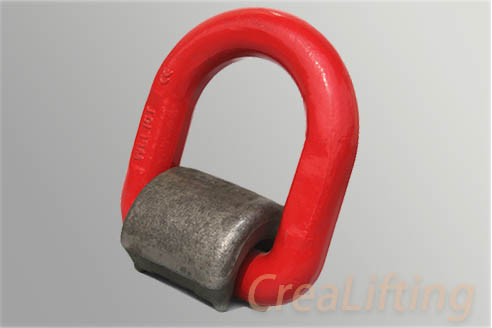

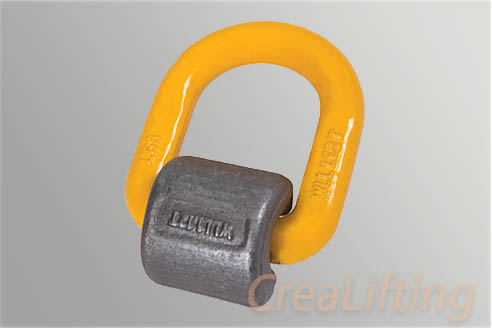

G80 Welded D Link


■ Powder painted, another color is available as per request.
■ The working load limits permanently are shown on the body.
■ Max's proof load is 2.5 times the working load limited.
■ Min. Breaking strength is 4 times of the W.L.L.


G80 Welded D Link


■ Powder painted, another color is available as per request.
■ The working load limits permanently are shown on the body.
■ Max's proof load is 2.5 times the working load limited.
■ Min. Breaking strength is 4 times of the W.L.L.

Size

W.L.L (t)

B.L (t)

Dimension (mm)

Weight (kg/pc)

A

B

D

14-8

2.5

10

65

55

14

0.3

17-8

4.0

16

80

72

19

0.7

19-8

6.5

26

80

72

19

0.7

22-8

8.0

32

90

76

22

1.0


It is required that the products are regularly inspected and that the inspection should take place in accordance with the safety standards given in the country of use. This is required because the products in use may be affected by wear, misuse, overloading, etc. with a consequence of deformation and alteration of the material structure.

Inspection should take place at least every six months and even more frequently when the hooks are used in severe operating conditions.
