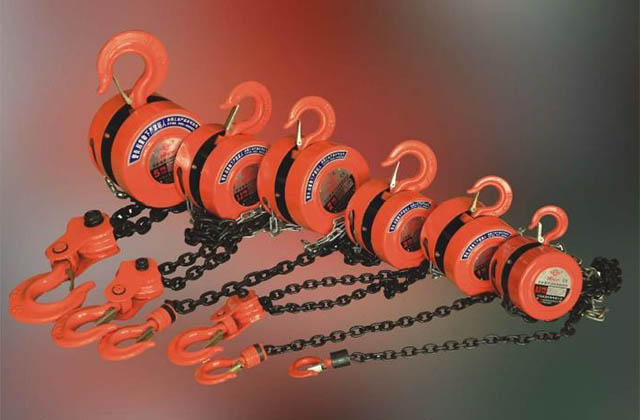

HS-Z type chain hoist (Manual Chain Block)

Products > Manual Chain Hoist > HS-Z type chain hoist (Manual Chain Block)

HS-Z type chain hoist (Manual Chain Block)

1) Capacity: From 1T --10Ton
2) Double cover protection
3) Fully forged Hooks
4) with Double pawls
5) with Double guide wheel
6) with G80 load chains of high quality
7) Load chains can be galvanized/blacked as per option.

HS-Z type chain hoist

1.Double pawls supporting fail-safe brake mechanism for secure operations.

2.Wet friction discs with longer life.

3.Unique chain guide.

4.Heat-treated steel side plates, gears, and shafts for enhanced strength.

5. Quenched and Tempered High Tensile Alloy Steel Chain and hooks.

6. Forged upper and bottom hooks with forged steel safety latches.

7.Powder-coated finish.

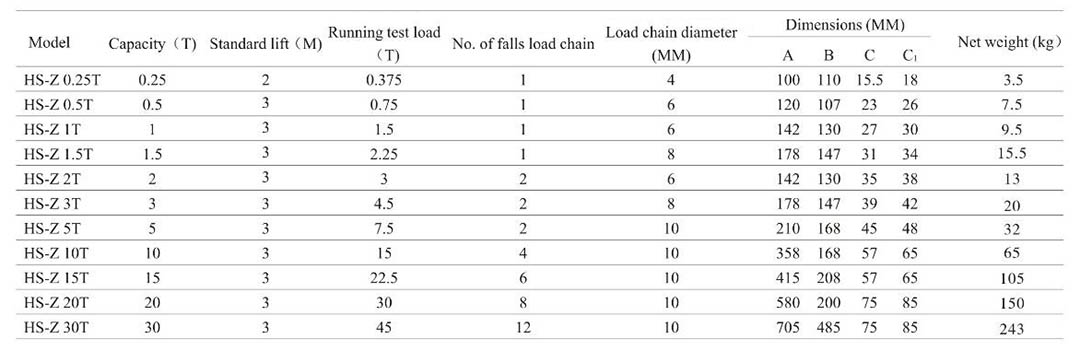

HS-Z Type Manual Chain Hoist parameter



1. High elastic spring with double pawl brake system design featuring stable operation and smooth braking. It's all significant for improving the security and dependability of the braking system by designing the dust cover of the braking system.

2. Double chain guide mechanism in flanged load sheave and guide roller facilitate smooth movement of the load chain.

3. Rolled edge hand wheel cover. This provides smooth operation of the hand chain when pulled sideways.

4. Lightweight and easy handing.

5. High efficiency and small hand pulling.
