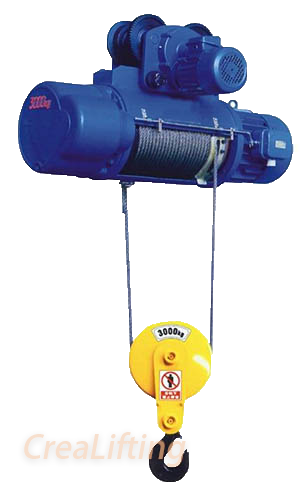

CD1 Electric Wire Rope Hoist

Products > Electric hoist > CD1 Electric Wire Rope Hoist

CD1 Electric Wire Rope Hoist

■ Model CD1, MD1 Electric Wire Hoist is a small-sized lifting equipment, which can be mounted on a single beam, bridge, gantry, and arm cranes.
■ With slight modification, it can also be used as a winch.
■ It is widely used in factories, mines, harbors, warehoused, cargo
storage areas and shops, essential in raising working efficiency and
improving working conditions.
■ Model CD1 Electric Hoist has only normal speed, which can satisfy normal applications.

CD1 Electric Wire Rope Hoist

Features:

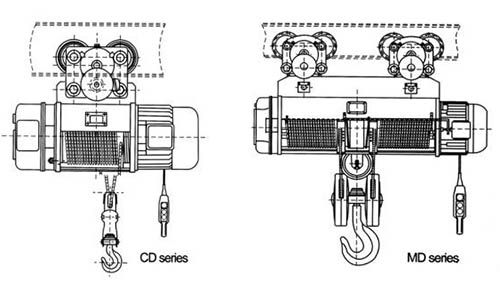

CD/MD series electric hoist is an improvement electric hoist that it can completely resolve the problem of that the electric hoist reaches the up limited position, guide rope device is embrittlement ent cracking, the wire rope is disorder, the reducer is losing oil, the frequent trouble about electric and so on.

Adopting heavy punch to limited the position, it has a simple structure, a reliable movement which can prevent the phenomenon of the electric hoist reaches the limited position that caused by the chock block in gag lever post to slide down, the unreliable movement of the spark out limited position and so many factors.

To prevent the disorder of the guide rope device, also can prevent the phenomenon of the wire rope wind disorder that appeared in the process of going up and going down. It can make sure that under the circumstance lack of hanger hook acting force, the wire rope can pass through the hole in the guide rope device regularly. the guide rope nut use whole to bisection structure, the spring can adjust the degree of tightness automatically, it is endurable.

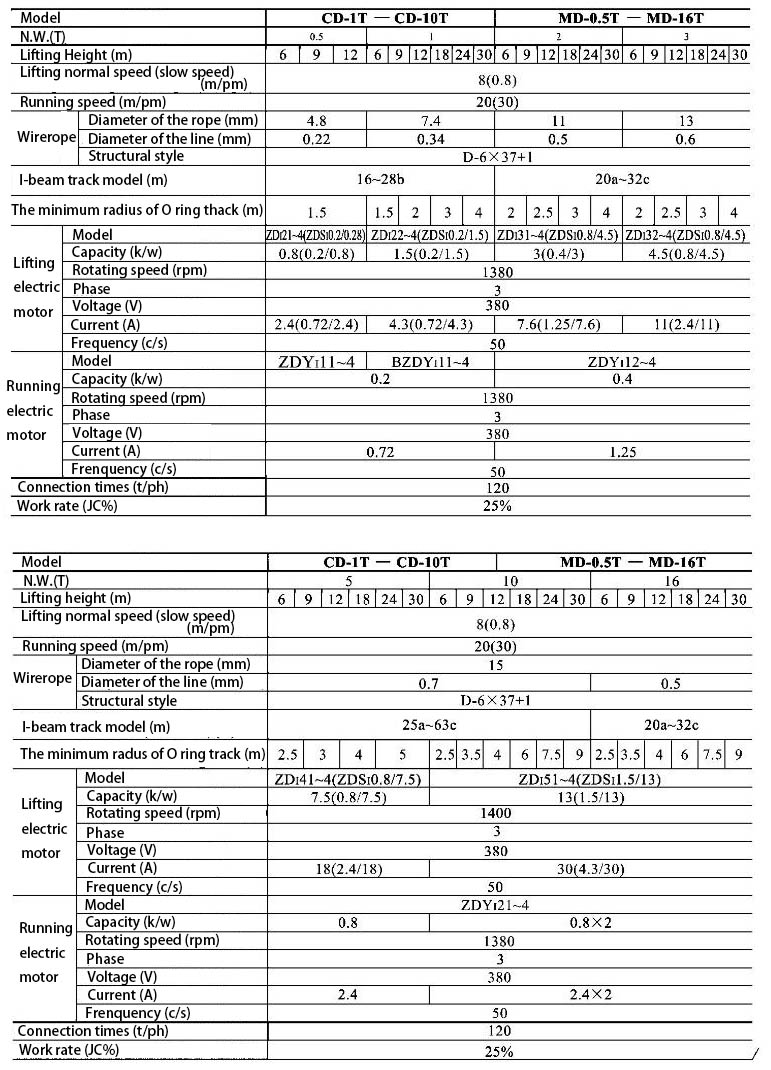

CD1 Type Electric Wire Rope Hoist  parameters:
