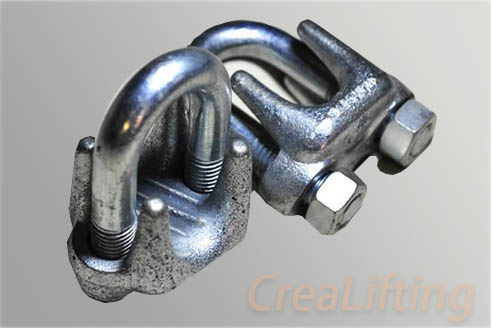

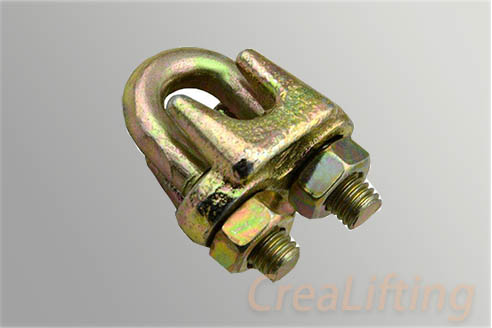

G450 U.S. Drop-forged Type Wire Rope Clips

Electric galvanized.
Size: 3-50

U.S. Type   Drop-forged Wire Rope Clips G450



Hot-dipped galvanized or zinc plated as a requirement.
FF-C-405 TYPE 1



Size

Dimension(inch)

Weight

(in)

A

B

C

(kg/pc)

1/8

0.47

0.72

0.22

0.03

3/16

0.59

0.97

0.25

0.05

1/4

0.75

1.03

0.31

0.09

5/16

0.88

1.38

0.38

0.14

3/8

1

1.5

0.44

0.21

7/16

1.19

1.88

0.5

0.34

1/2

1.19

1.88

0.5

0.36

9/16

1.31

2.25

0.56

0.47

5/8

1.31

2.38

0.56

0.48

3/4

1.5

2.75

0.62

0.68

7/8

1.75

3.12

0.75

0.96

1

1.88

3.5

0.75

1.18

1-1/8

2

3.88

0.75

1.32

1-1/4

2.31

4.25

0.88

1.95

1-3/8

2.38

4.63

0.88

2.09

1-1/2

2.59

4.94

0.88

2.45

1-5/8

2.75

5.31

1

3.18

1-3/4

3.06

5.75

1.13

4.20

2

3.38

6.44

1.25

5.90

2-1/4

3.88

7.13

1.25

7.26

2-1/2

4.13

7.69

1.25

8.62

2-3/4

4.38

8.31

1.25

10.43

3

4.75

9.19

1.50

14.06

3-1/2

5.50

10.75

1.50

18.15
